2013 Ford E-Series - Specs, Features, 0-60 and Top Speed

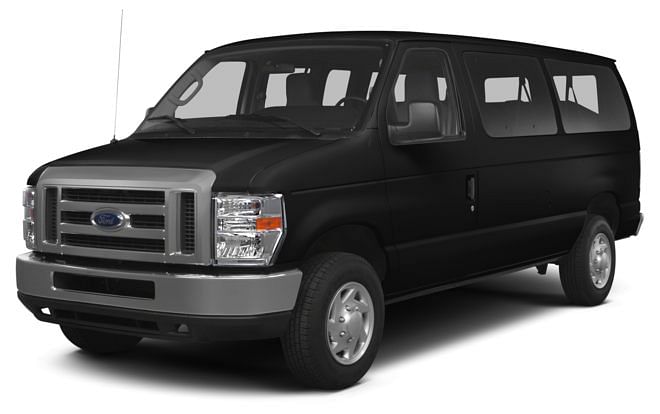

2013 Ford E-Series
MSRP$29,455
Specs
- origin countryUnited States
- engine4.6 L
- horsepower225 hp @ 4800 rpm
- torque286 lb.-ft. @ 3500 rpm
- transmission4-Speed Automatic
- 0-60 time10.2 sec
- combined fuel economy14 mpg
Trims
performance
| zero to 60 mph | 10.2 sec |
| top speed | 138 mph |
engines
| valvetrain | Single Overhead Cam (SOHC) |
| transmission | 4-Speed Automatic |
| engine type | V8 |
| compression ratio | 9.00 to 1 |
| valves | 32 |
| engine displacement | 281 cu.in. |
| engine bore x stroke | 3.6 x 3.5 |
| engine size | 4.6 L |
| engine horsepower | 225 hp @ 4800 rpm |
| engine torque | 286 lb.-ft. @ 3500 rpm |
| engine orientation | longitudinal |
| engine oil cooler | 1 |
| cylinder head | Aluminum |
| engine block | Aluminum |
MPGs
| fuel economy city | 13 mpg |
| fuel economy highway | 16 mpg |
| fuel economy combined | 14 mpg |
| fuel tank capacity | 33 gal. |
| range in miles | 429/528 mi. |
| fuel type | Flex-Fuel Unleaded |
interiors
| 3rd row head room | 40.1 in. |
| 3rd row hip room | 66.8 in. |
| 3rd row leg room | 40 in. |
| 3rd row shoulder room | 71.7 in. |
| cargo capacity all seats in place | 18.2 cu.ft. |
| front headroom | 42 in. |
| front hiproom | 65.6 in. |
| front legroom | 40 in. |
| front shoulder room | 68.1 in. |
| interior cargo length to 3rd row seat | 51.4 in. |
| interior cargo length to rear seat | 84.9 in. |
| cargo capacity all seats folded | 100.7 cu.ft. |
| maximum cargo capacity | 236.5 cu.ft. |
| bed length | 66 cu.ft. |
| passenger capacity | 8 |
| passenger volume | 152.7 cu.ft. |
| 2nd row headroom | 40.2 in. |
| 2nd row hiproom | 66.5 in. |
| 2nd row legroom | 38.8 in. |
| 2nd row shoulder room | 71.7 in. |
| cargo capacity 2nd row seats folded | 237.8 cu.ft. |
| cargo capacity 3rd row seats folded | 47.9 cu.ft. |
exterior dimensions
| axle ratio | 4.1 |
| axle to end of frame | 43.8 in. |
| curb weight | 5679 lbs. |
| frame section modulus | 2.9 cu.in. |
| frame yield strength | 36000 psi |
| front axle capacity | 5000 lbs. |
| front gawr | 3700 lbs. |
| front spring rating | 3700 lbs. |
| front tire/wheel capacity | 4600 lbs. |
| front tread | 70.3 in. |
| gross weight | 8520 lbs. |
| ground clearance | 9 in. |
| height | 82.1 in. |
| length | 216.7 in. |
| payload | 2820 lbs. |
| rear axle capacity | 5520 lbs. |
| rear gawr | 5120 lbs. |
| rear spring rating | 5120 lbs. |
| rear tire/wheel capacity | 5360 lbs. |
| rear tread | 67.1 in. |
| turning radius | 24.3 in. |
| wheelbase | 138 in. |
| width | 79.4 in. |
| frame type | Single Channel |
towing
| maximum towing capacity | 7000 lbs. |
| trailering class | Class IV Trailering With Harness, Hitch(Optional) |
| fixed tow bar | No |
brake
| brake drying | No |
| electronic brakeforce distribution | Yes |
| abs and driveline traction control | 4-Wheel ABS |
| abs channels | 3 |
| power regeneration | No |
| front brake | Front And Rear Ventilated Disc Brakes |
| rear brake | Rear Ventilated Disc Brakes |
| rear brake rotor diam x thickness | 13.6 x 0.4 |
| front brake rotor diam x thickness | 13.6 x 0.5 |
transmission
| drivetrain | Rear Wheel Drive |
| overdrive | Yes |
| standard transmission | 4-Speed Automatic |
| transmission electronic control | Yes |
| transmission oil cooler | Yes |
| paddle shifters | No |
warranty
| basic warranty | 3 yr. / 36000 mi. |
| drivetrain warranty | 5 yr. / 60000 mi. |
| roadside assistance | Yes |
| roadside warranty | 5 yr. / 60000 mi. |
| rust warranty | 5 yr. / Unlimited mi. |
| corrosion perforation warranty | 5 yr. / Unlimited mi. |
